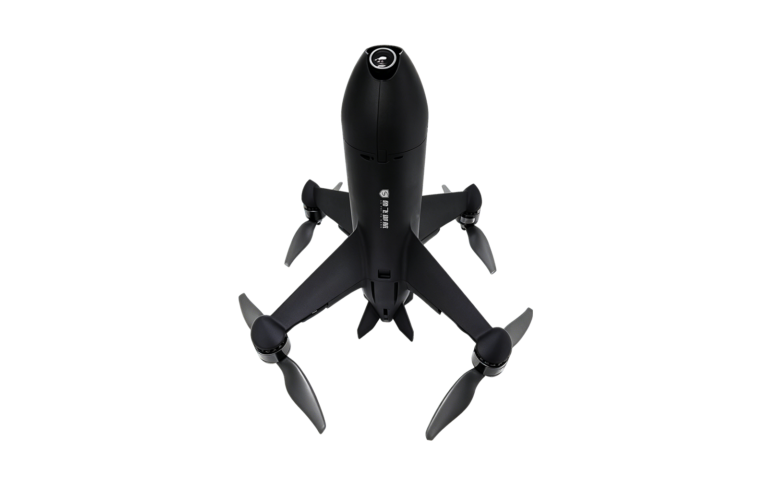

rack model 7-inch high-speed rocket barometer SPL06-001 rack type Fluid rocket shape gyroscope ICM-42688-P wheelbase 300mm Black box capacity 16MB bare weight 650g Image transmission on/off control Supports (lever control) Maximum flight speed 320km/h Image transmission 5.8G (standard configuration) Rated...

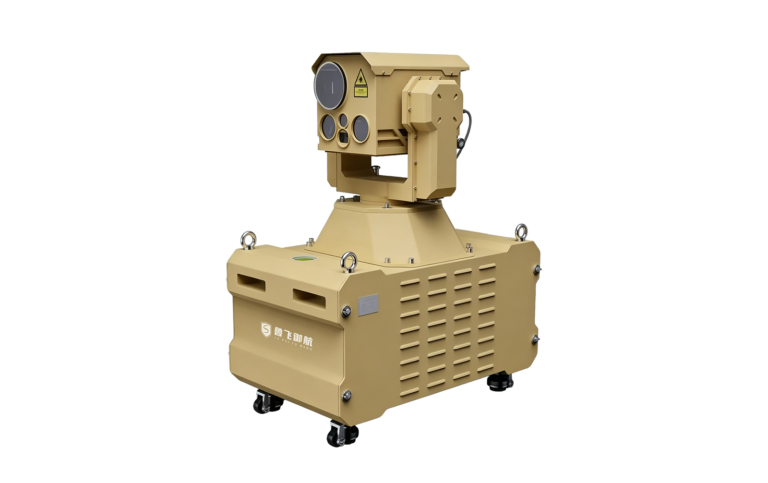

structure The equipment adopts an integrated design that allows for easy disassembly and reassembly, facilitating transportation, installation, relocation, and deployment during application. power ≥2000W effective range 500m~1000m laser wavelength 1070±20nm Function Intercept and destroy unauthorized...

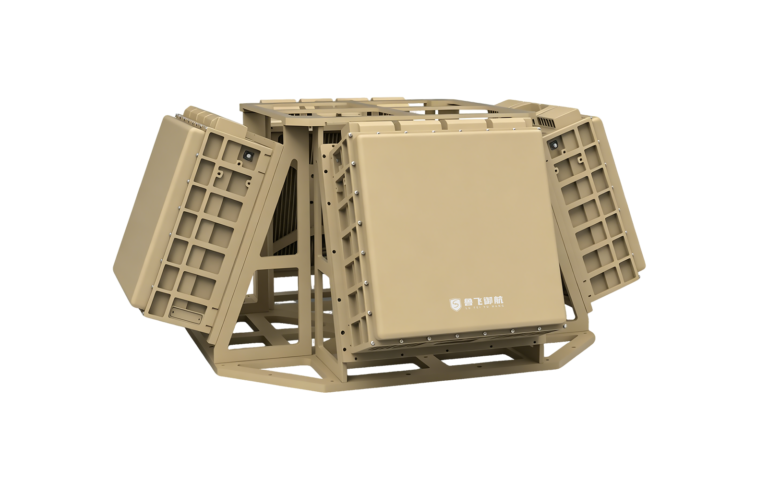

parameter index frequency band X-band Detection range ≥10km (RCS: 0.01m2, drone) Work mode Supports both mechanical scanning and 2D phase scanning. Search scope Mechanical sweeping: Azimuth: 0°~360°, Pitch: 0°~60° (configurable according to task requirements) Phase scan: Azimuth: -45°~45°,...

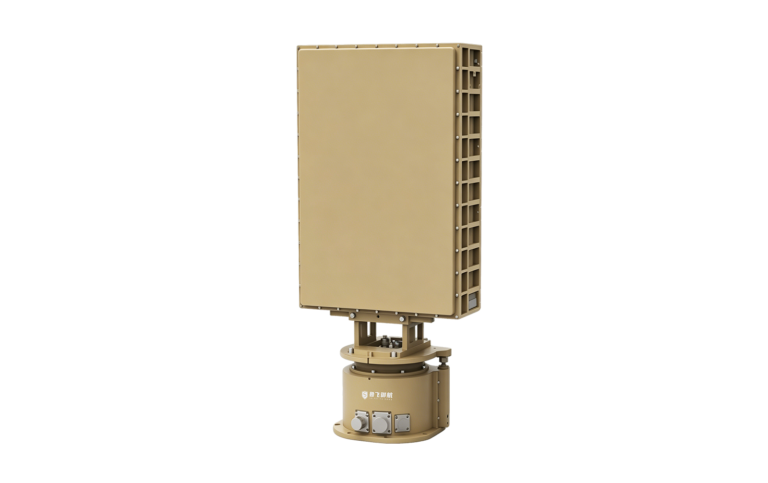

parameter index frequency band X-band Detection range ≥5km (RCS: 0.01m2, drone) blind spot ≤150m Work mode Two-dimensional phased array Search scope Azimuth: 0°~360°, Pitch: 0°~60° (configurable according to mission requirements) Tracking function With TAS functionality TAS tracking target...

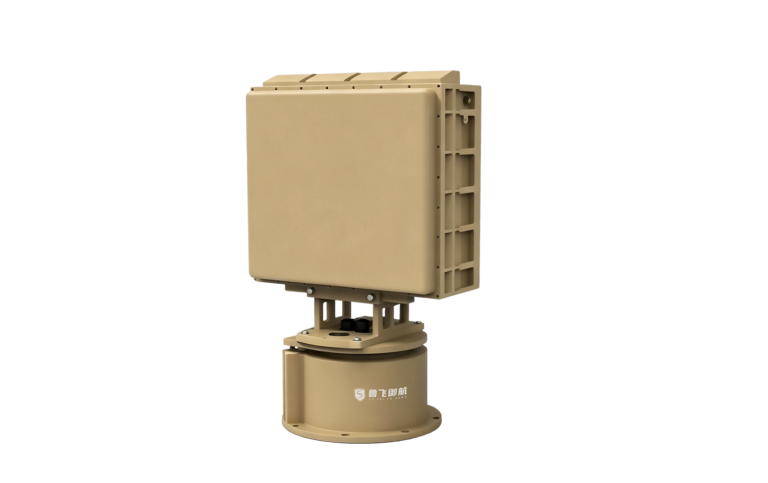

parameter index frequency band X-band Detection range ≥5km (RCS: 0.01m2, drone) blind spot ≤150m Work mode Supports both mechanical scanning and 2D phase scanning. Search scope Mechanical sweeping: Azimuth: 0°~360°, Pitch: 0°~60° (configurable according to task requirements) Phase scan:...

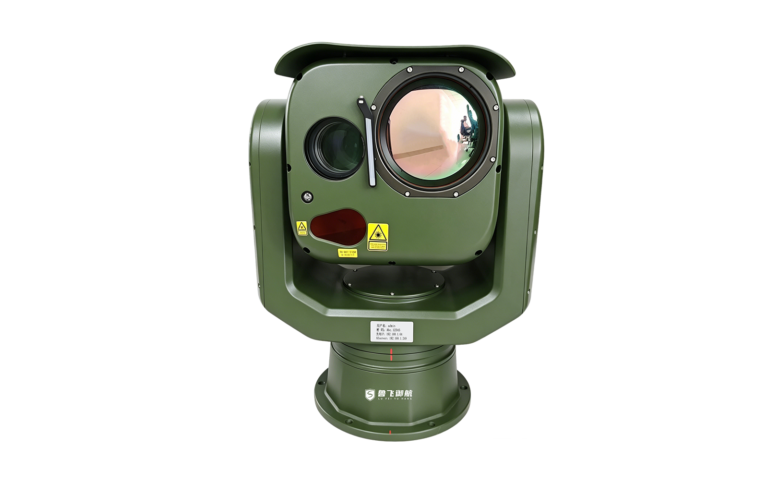

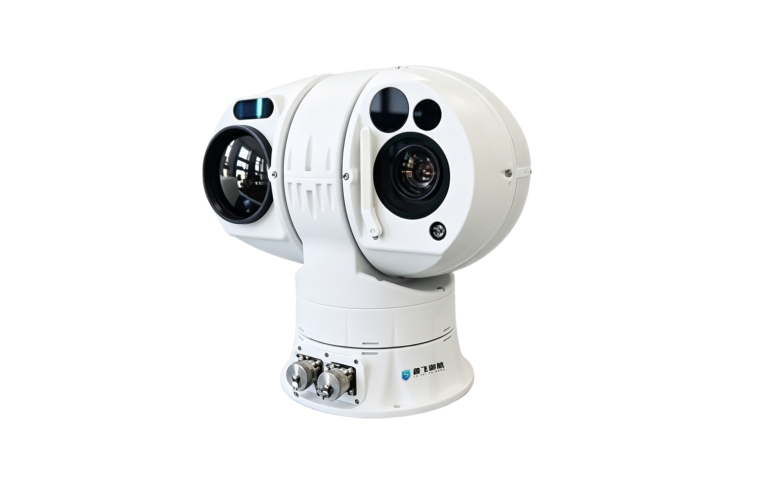

angle Looking up and down -90~90° angle position 360° distance Recognition distance – visible light 3000m distance Identification distance – thermal imaging 1200m distance Tracking distance – visible light 5000m distance Tracking distance – thermal imaging 1700m Visible...

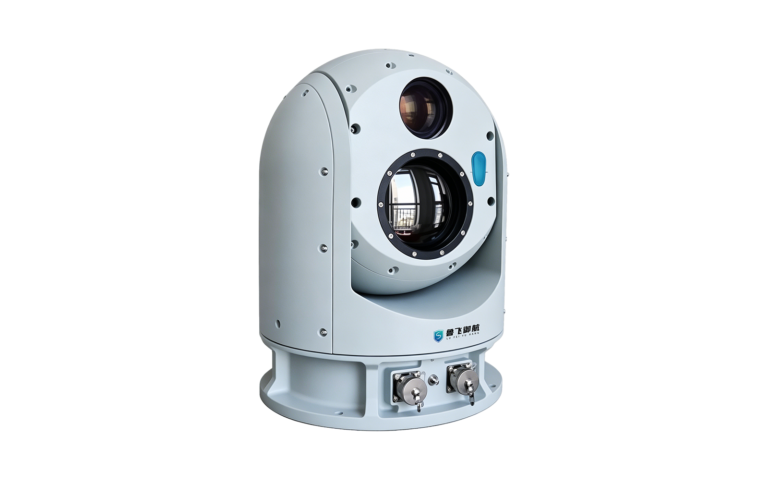

distance Identification distance Visible light：2000m Thermal imaging：800m Tracking distance Visible light：3000m Thermal imaging：1000m Visible light unit 4 megapixels Thermal imaging unit 640×512 Power consumption ≤150W peak350W Protection level IP66

angle Looking up and down -90~90° position 360° distance Recognition distance – visible light 1000m Identification distance – thermal imaging 500m Tracking distance – visible light 2000m Tracking distance – thermal imaging 800m Visible light unit Pixels 2 megapixels focal...

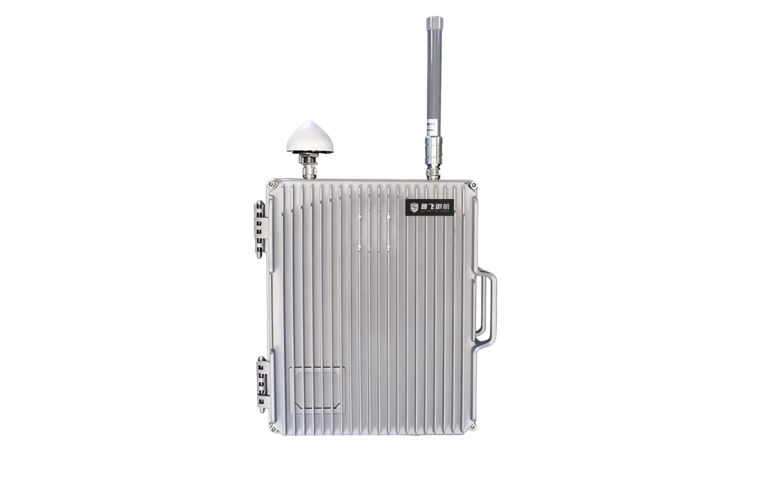

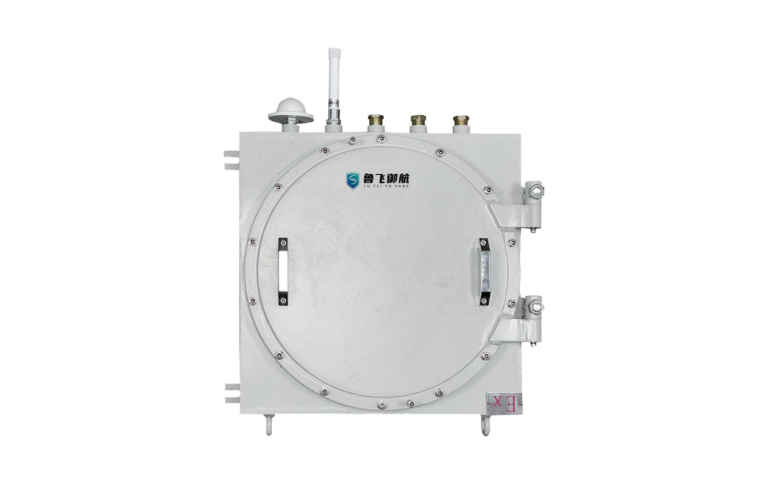

Defense radius distance ≤1km Equivalent Isotropic Radiation Power ≤10mW (domestic standard) adjustable power increase Bandwidth usage Not greater than the frequency range Onset time ≤10s Frequency tolerance ≤±2×10-6 Frequency range BDS: B1I/B2I/B3I/B1C, GPS: L1/L2/L5, GLONASS: L1/L2/L3, Galileo:...

Defense radius distance ≤1km Equivalent Isotropic Radiation Power ≤10mW (domestic standard) adjustable power increase Bandwidth usage Not greater than the frequency range Onset time ≤10s Frequency tolerance ≤±2×10-6 Frequency range BDS: B1I/B2I/B3I/B1C, GPS: L1/L2/L5, GLONASS: L1/L2/L3, Galileo:...
